Vessel Compass Rise is a 510 battery. VapoChecker compares current offers from 59.55 € (plus shipping) across 4 shops (as of Nov 13, 2026).Price basis: Item price excluding shipping and coupons
63.16€($69.99)$69.99× 0.9024 (12. Nov 2026)= 63.16 €56.84€−10%with codeVAPOCHECKER10Price with code; free-shipping threshold unconfirmed3–6 business days

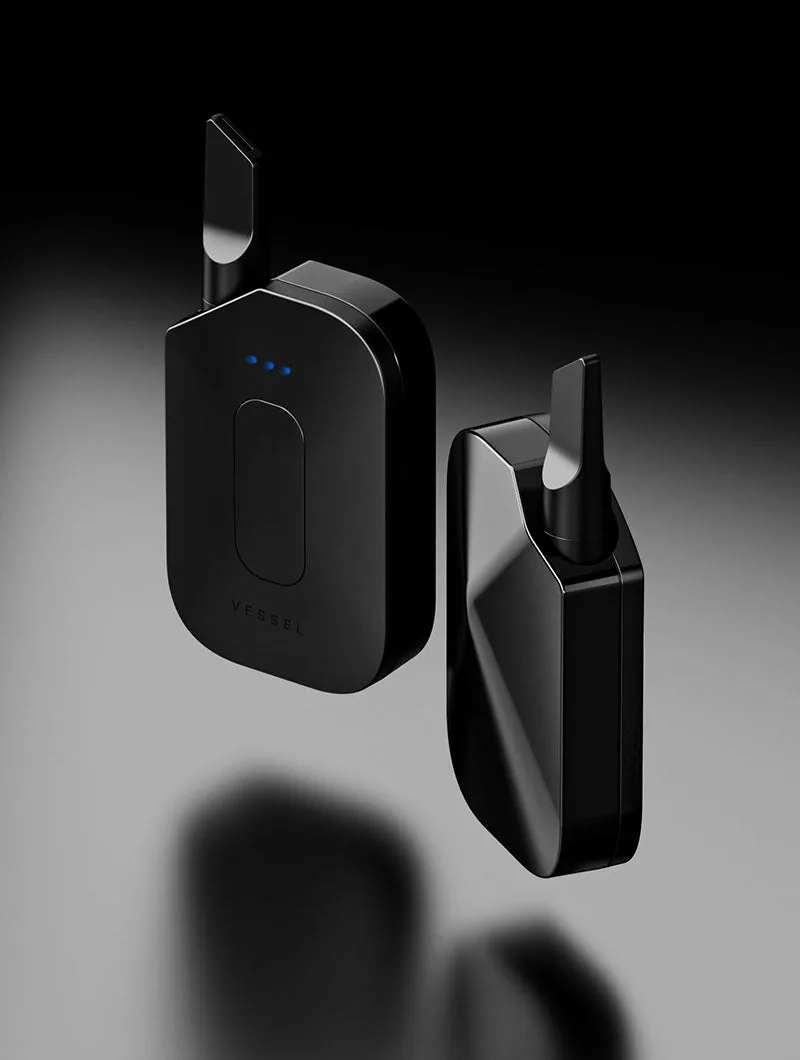

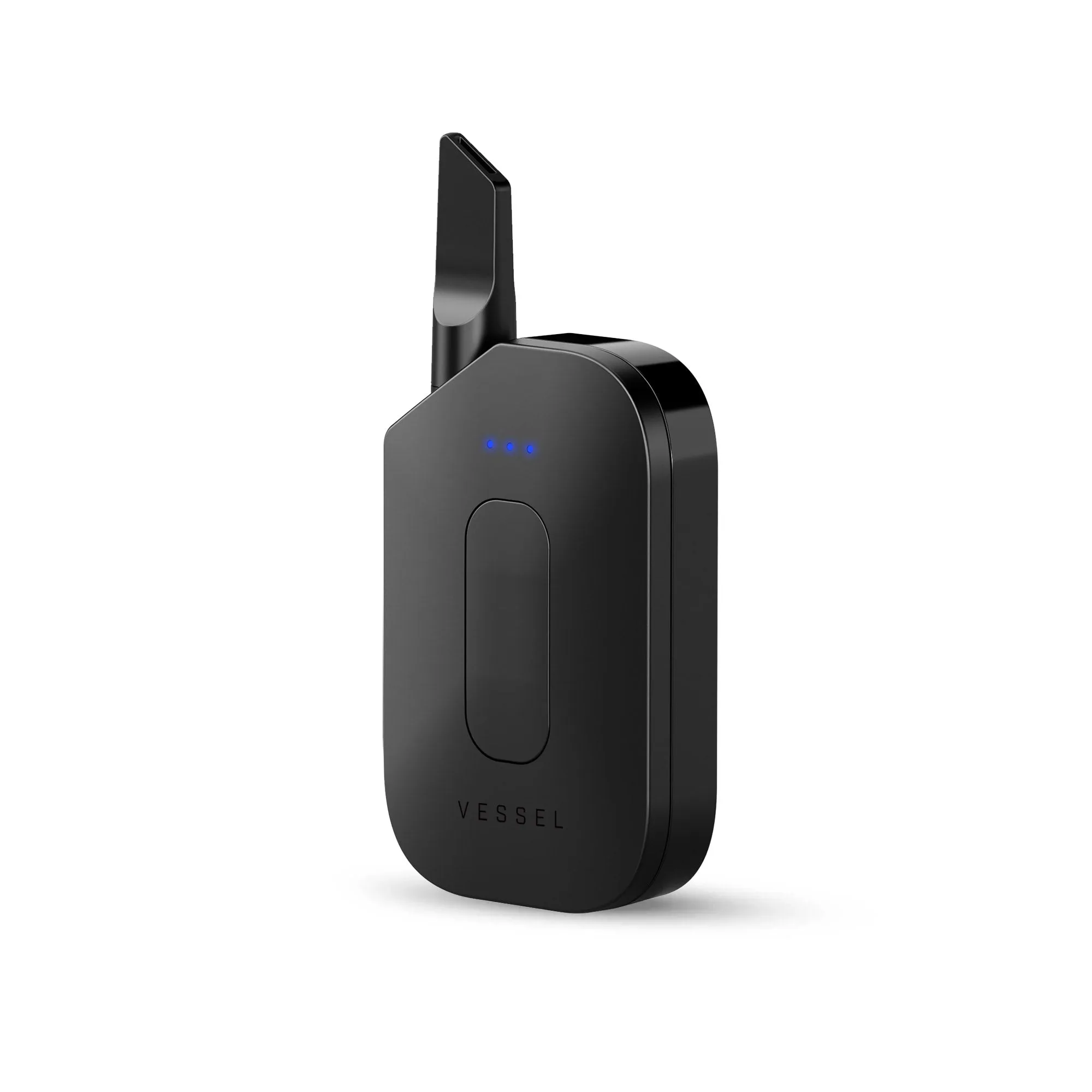

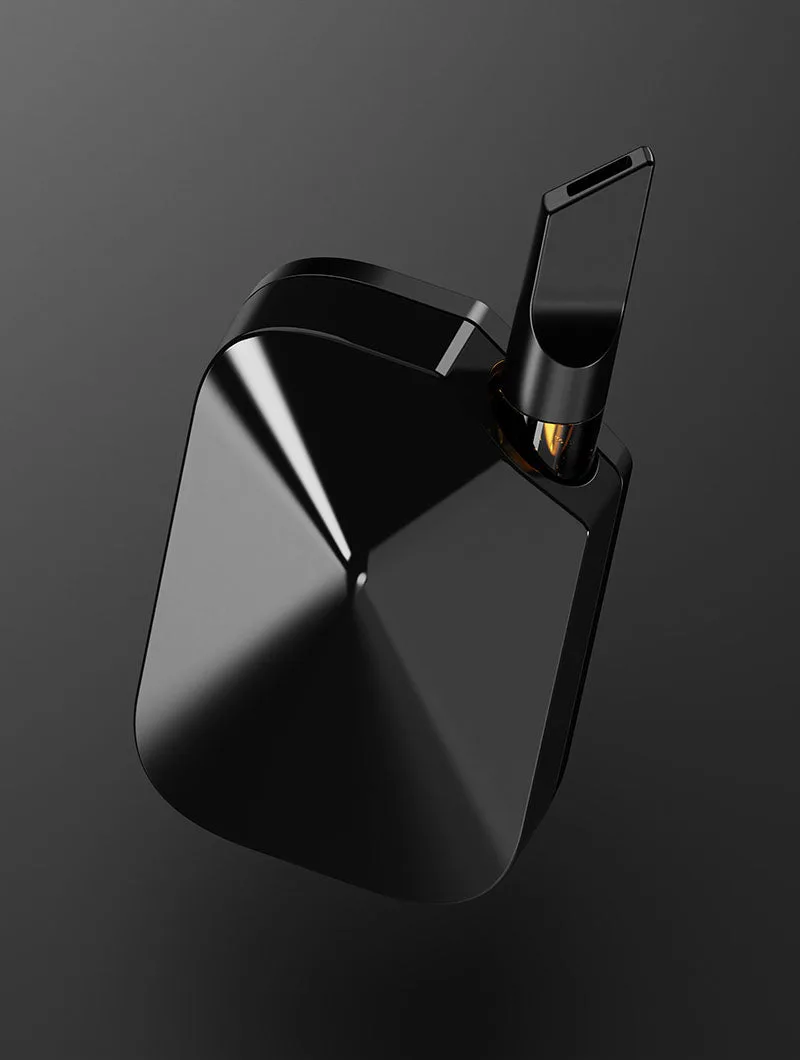

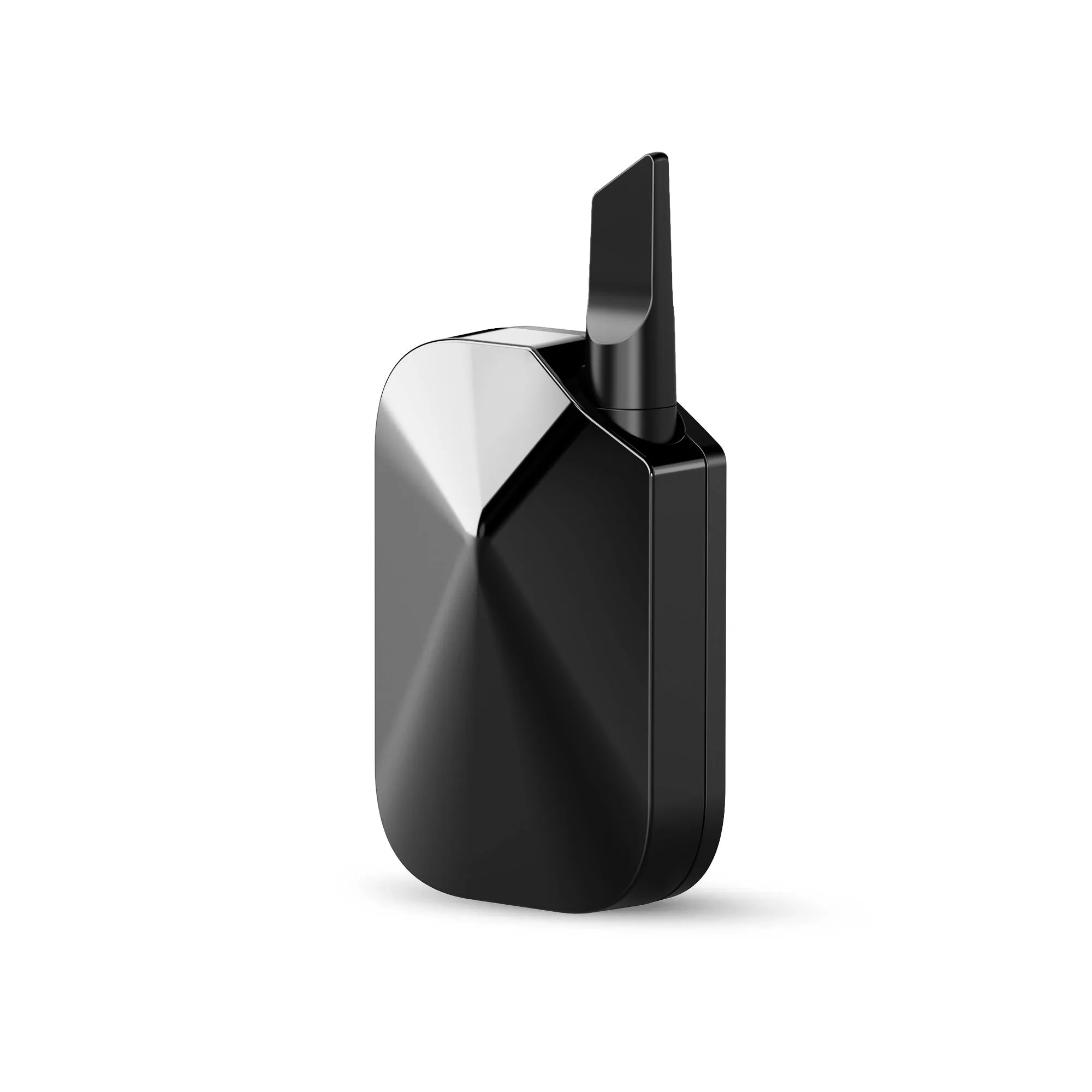

The Vessel Compass Rise is a palm-sized 510 battery in which the cartridge lies flat inside the housing rather than sticking out vertically. The body is made entirely of anodized aluminum, which Vessel describes as plastic-free. Five voltage levels from 1.9 to 3.6 volts cover a wider span than most cartridge batteries, with the lowest aimed at flavor and the highest at vapor volume. An opt-in preheat warms thick oils, and the last selected level is remembered. The 550 mAh battery charges over USB-C. The device accepts 510 cartridges up to 11.5 millimeters in diameter and measures 63.75 x 40.89 x 18.80 millimeters at roughly 100 grams.
The Compass range differs from pen-shaped batteries because the cartridge does not protrude from the top but sits horizontally in a recess in the housing. It is inserted from above and is therefore protected against impacts when the device is carried in a pocket. At the same time, the cartridge remains partly visible because the holder is open towards the mouthpiece. A rotating mechanism moves the cartridge into position. The Compass Rise rests flat in the palm, making it feel different from a vape pen when taking a draw.
Five voltage settings with memory
Five fixed settings cover 1.9 volts, 2.4 volts, 2.8 volts, 3.2 volts and 3.6 volts. The lowest setting is lower than that of most cartridge batteries and is designed for flavor, while 3.6 volts produces visible vapor. A practical feature for everyday use is that the device remembers the most recently selected setting and starts with it the next time it is switched on instead of reverting to a default value. An optional preheat phase can also be activated to warm viscous oil before the actual draw begins. An LED indicates the setting and charge level.
550-mAh battery and USB-C
At 550 mAh, the battery has a considerably higher capacity than that of the smaller Vista Edge. It is charged via USB-C, and a suitable cable is included. This eliminates the reliance on a proprietary magnetic cable found with other Vessel models: a replacement cable can be found in virtually any drawer. The housing is made entirely from anodized aluminum; Vessel explicitly states that no plastic has been used. This also explains the weight of around 100 grams, which makes the Compass Rise heavier than a typical pen battery.
Dimensions, cartridges and warranty
The device measures 63.75 x 40.89 x 18.80 millimeters, allowing it to fit in a trouser pocket without creating the outline of a pen. It accommodates 510-thread cartridges with a diameter of up to 11.5 millimeters. Anyone using wider cartridges should measure them before purchasing, as thicker models will not fit in the holder. The manufacturer's warranty covers defects in materials and workmanship under normal use for six months and requires product registration. The box contains the device and a USB-C cable.
Five fixed settings: 1.9 volts, 2.4 volts, 2.8 volts, 3.2 volts and 3.6 volts. The device remembers the most recently selected setting for the next use.
Standard 510-thread cartridges with a diameter of up to 11.5 millimeters. Wider cartridges will not fit in the holder.
Yes, it can be activated to warm viscous oil before the actual draw begins. It is optional and is not permanently active.
Via USB-C, with the cable included. Unlike the Vista Edge, it does not require a special magnetic cable; a standard USB-C cable will also work.
Around 100 grams, with dimensions of 63.75 x 40.89 x 18.80 millimeters. The all-metal housing made from anodized aluminum explains the weight.
The Compass Rise features five rather than four voltage settings, a housing made entirely of anodized aluminium and an optional preheat function. Both share the same basic design with a horizontal cartridge.
